LED Explosion Proof Linear Light UL C1D1 Pointer GHLW

  • CID1
  • CID2

Designed for hazardous environments, the GHLW C1D1 linear light from GRINSAFE is ideal for environments where explosive and flammable gas, liquids, or vapors are present in normal operating conditions. They are also known for their outstanding thermal shock and impact resistant construction.

Design Features

  • 8.5 kg ONLY, balanced well in weight, safety and durability
  • Convenient wiring access through screw-cap cover with toolless, cage clamp terminal block
  • 2 models from 3,200 to 16,000 lumens with up to 160Lm/W.
  • Superior thermal heat sink design provides outstanding performance from –40°C to +65°C wide enough for any environment
  • EMERGENCY BATTERY BACK-UP. 90-minutes minimum running time at 15W in emergency mode.
Part Number Builder

Datasheet

  • Technical Data

  • Mounting Options

  • Downloads

Technical Data

Product Series GHLW
Rated Power 20W/30W/40W/60W/80W/100W
Input Voltage AC100-277V, 277-480V
Input Frequency 50/60Hz
Driver Efficiency ≥  90%
Lumen Output 3,400lm ~ 17,000lm
Luminous Efficacy 170Lm/W
Beam Angle 110°
CCT Amber / 2700K / 3000K / 4000K / 5000K
CRI Ra>70
Operating Temperature -40°C~+65°C / -20°C~+50°C (EMB)
Lens Material Tempered Glass

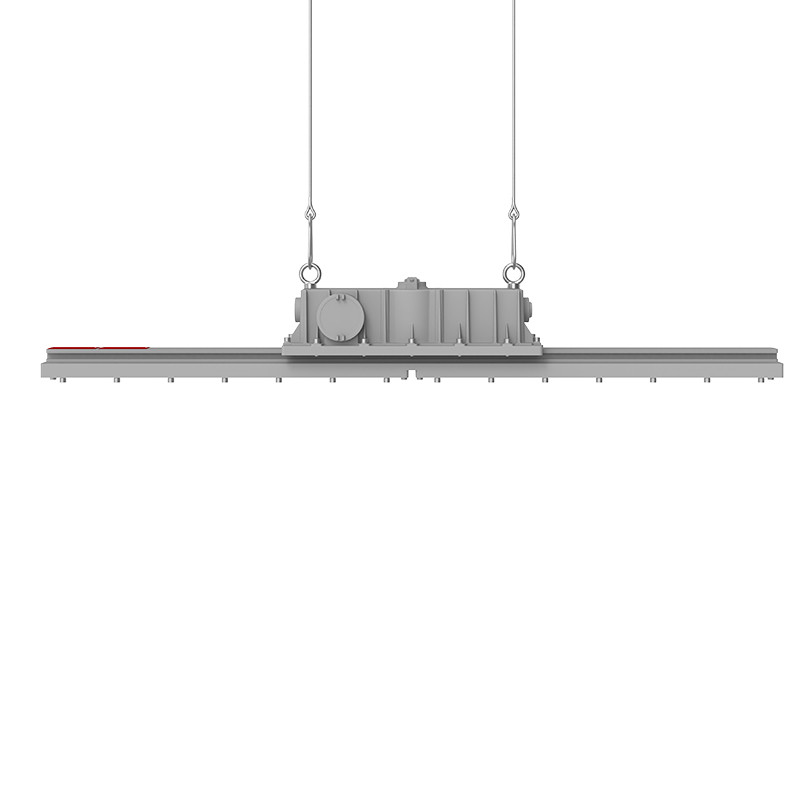

Mounting Options Pendant / Ceiling / Wall / Hanging / Stanchion / Hanging
Cable Entries 3/4”NPT, 1-1/4”NPT, 1-1/2”NPT

Mounting Options

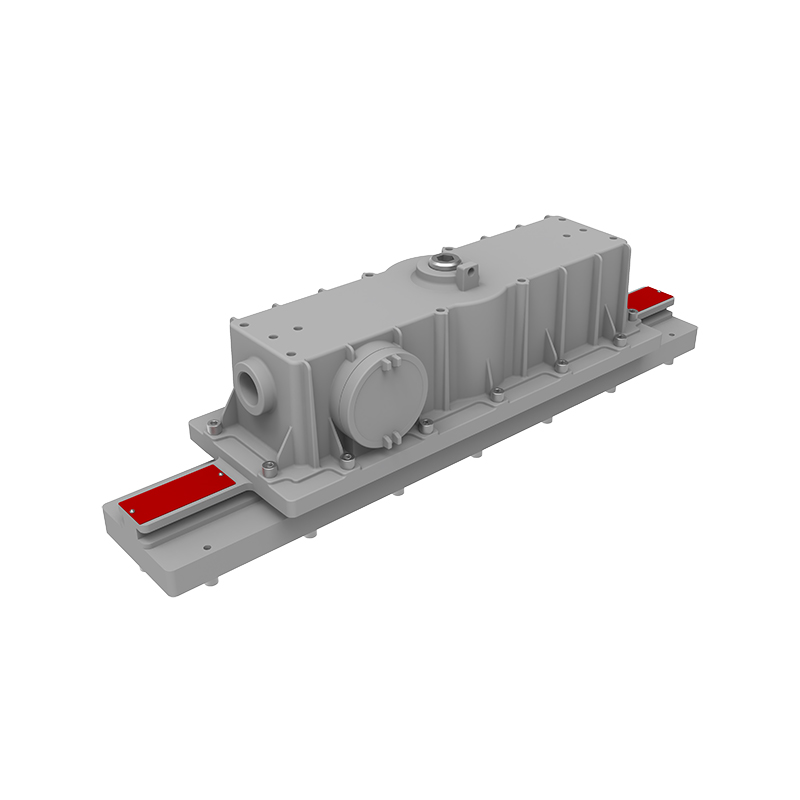

PD
PD

Pendant mount 3/4" NPT

OSM
OSM

Offset ceiling / wall Swivel Bracket

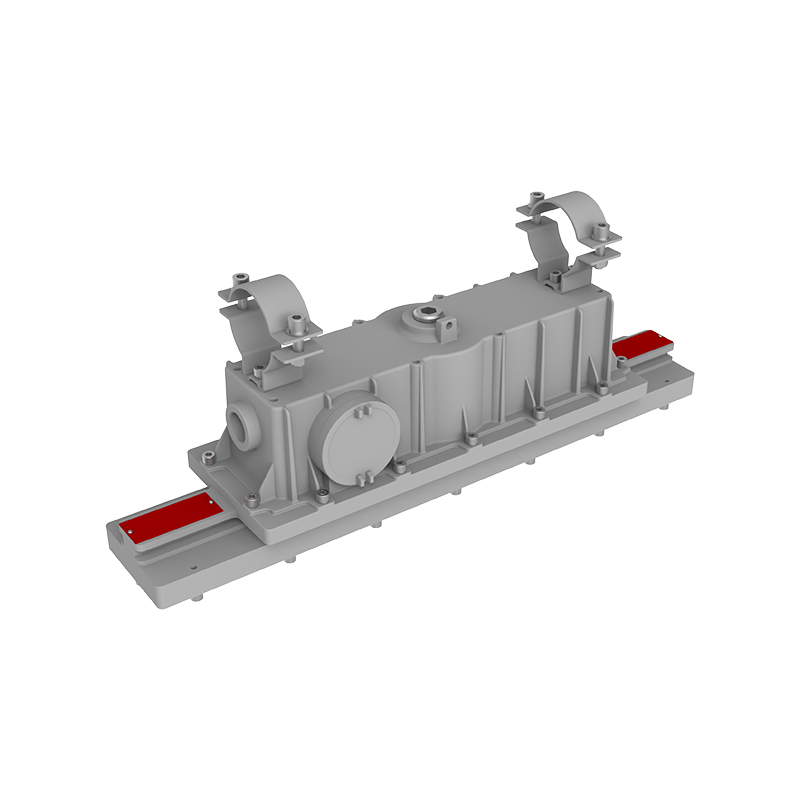

PCM48/60
PCM48/60

Pole clamp

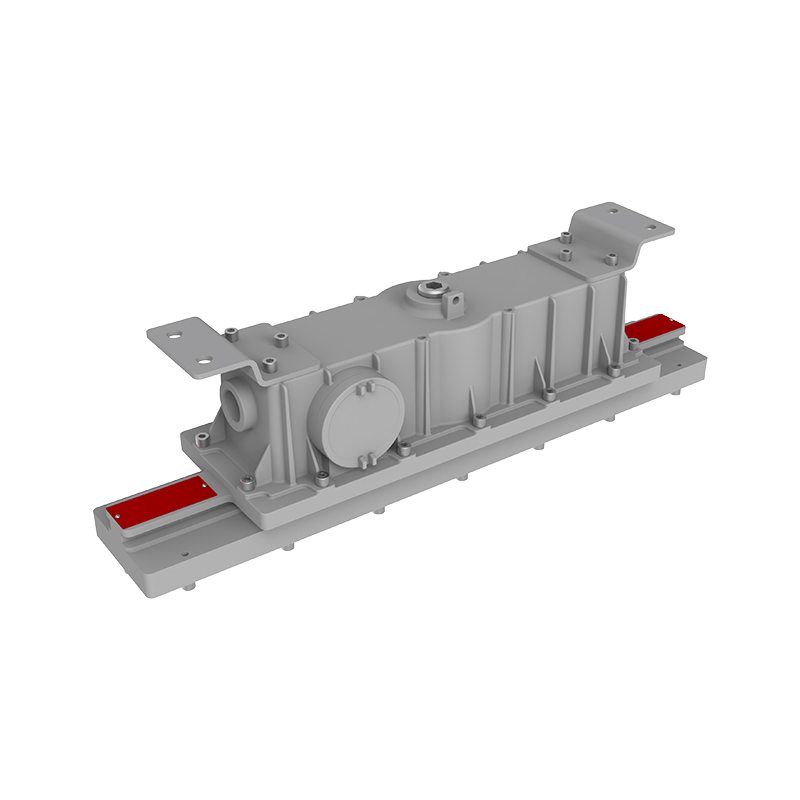

FLM
FLM

Flush ceiling / wall mount

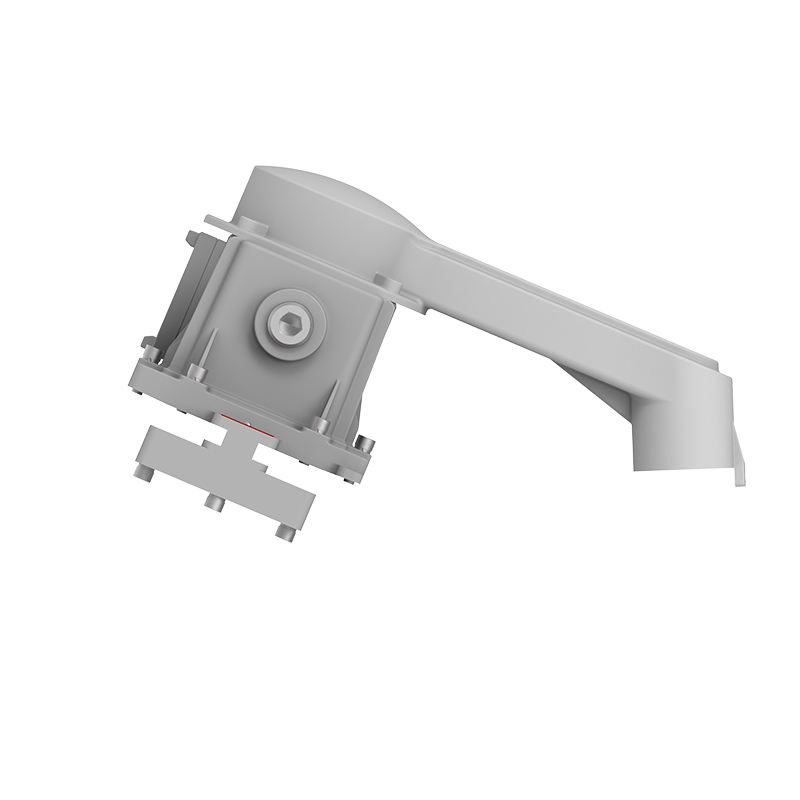

S25A/B
S25A/B

Stanchion mount 25°

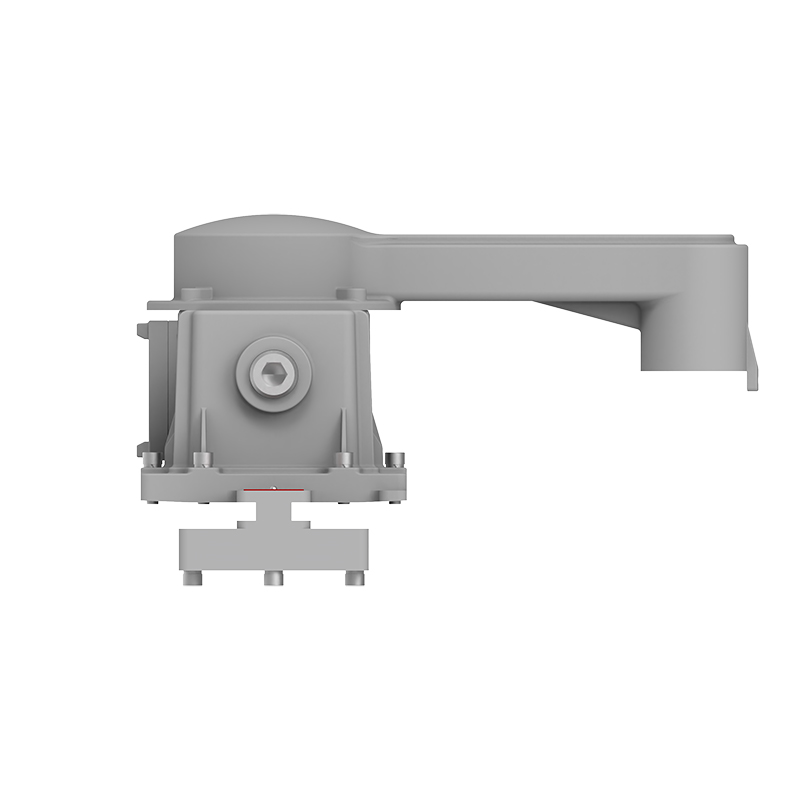

S90A/B
S90A/B

Stanchion mount 90°

W25A/B
W25A/B

Wall mount 25°

W90A/B
W90A/B

Wall mount 90°

Certifications & compliances

NEC/CEC Standard

UL 844 Hazardous Locations
Class I Division 1, Group C, D
Class I Division 2, Group A, B, C, D
Class III
CSA C22.2 No.137
CSA C22.2 No.250.0
UL924
UL 1598 Wet Locations
UL 1598A Marine Outside Type (Salt Water)
UL 8750 LED Safety
IP66/67 | IK08 | 5G | NEMA 4X

Additional Features

  • Universal Voltage: AC120-277, 277-480V (50/60Hz)
  • High efficacy up to 170lm/W,
  • CCT Adjustable (3000K/ 4000K /5000K)
  • Wildlife Friendly Amber color options
  • 10kV surge protector is standard, 20kV is optional
  • 9 different mounting options
  • Dimming: Standard 1 – 10VDC
  • Ambient temperatures -40°C to +65°C
  • IP67 / IK08 / 5G / NEMA 4X
  • Resistant up to 2,000 PSI of hose directed water
  • Tested 1000hrs salt spray to standard ASTM”B117-11”
  • Lumen Maintenance L70>150,000hours @ 25°C
  • 5-year limited system warranty

Standard Materials

  • Lamp housing, splice box – die cast copper-free aluminum
  • Finish – baked Powder epoxy/polyester
  • Lens – heat, shock, impact resistant tempered glass
  • Gaskets – high temperature resistant silicone
  • Hardware – stainless steel
  • Lacquer-free nameplate
