Explosion Proof Emergency Battery Back-up Light SCOUT GHSL

  • CID1
  • CID2
  • CIID1

SCOUT™ GHSL high performance LED explosion proof lighting is designed to be installed in areas where flammable gases, vapors, or dusts are present in sufficient quantities to create a risk of explosion or fire. Reliable and long-lifetime LiFePO4 battery providing 90-minute runtime for emergency applications.

Design Features

  • Optimized design, 11.5 kg ONLY, balanced well in weight, safety and durability.
  • Hinge design makes the installation easier and safer.
  • High efficacy LEDs, up to 160lm/w, maintains the same light intensity with less power consumption against the conventional lamps.
  • Multiple beam angles provide more choices for various scenarios.
  • 360° Adjustable U-Bracket corrosion, vibration, impact and shock resistant, passed 5G, 3-axis vibration test.
  • Universal mounting accessories for easy retrofitting.
  • Terminal blocks fitted as standard for faster installation.
Part Number Builder

Datasheet

  • Technical Data

  • Mounting Options

  • Downloads

Technical Data

Product Series GHSL
Rated Power 80W / 100W
Input Voltage AC120-277V
Input Frequency 50/60Hz
Driver Efficiency ≥  90%
Lumen Output 13,500lm ~ 16,500lm
Luminous Efficacy 165Lm/W
Beam Angle 30°/60°/90°/110°/T2/T3/T4
CCT Amber / 2700K / 3000K / 4000K / 5000K
CRI Ra>70
Ambient Operating Temperature 0°C ~ +50°C
-20°C ~ +50°C (cold weather)
Lens Material Glass
Mounting Options Pendant / Ceiling / Wall mount / Stanchion / U-Bracket
Cable Entries 3/4”NPT, 1-1/4”NPT, 1-1/2”NPT
Net Weight 11.5kg

Mounting Options

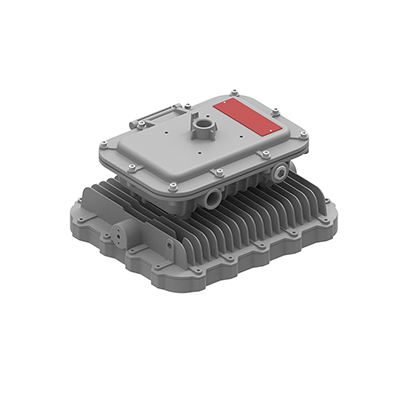

Pendant Mount
Pendant Mount

Trunnion Bracket
Trunnion Bracket

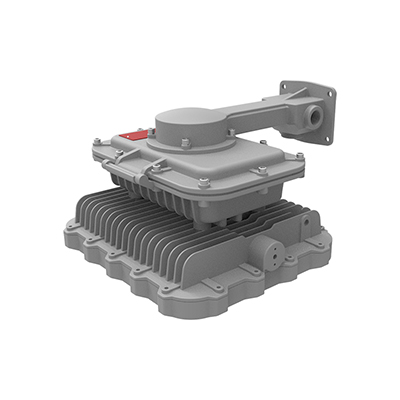

Wall mount 90°
Wall mount 90°

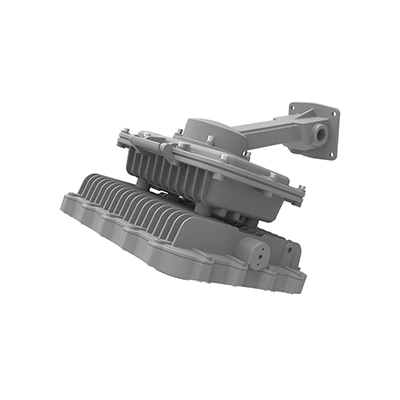

Wall mount 25°
Wall mount 25°

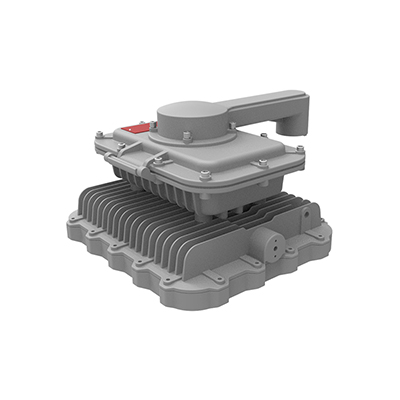

Stanchion mount 90°
Stanchion mount 90°

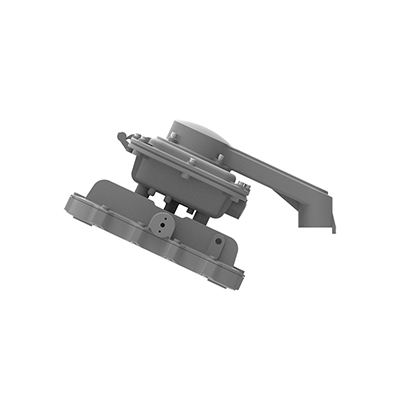

Stanchion mount 25°
Stanchion mount 25°

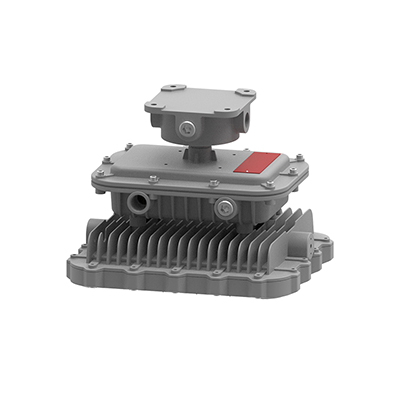

Ceiling mont
Ceiling mont

Document Updated Download
SCOUT™ GHSL Spec Sheet 2025-05-27
Download

Certifications & compliances

NEC/CEC Standard
UL 844 Hazardous Locations
Class I Division 1, Group C, D
Class I Division 2, Group A, B, C, D
Class II Division 1, Group E，F, G
Class II Division 2, Group F, G
Class III
Class I, Zone 1, Group IIB
Class I, Zone 2, Group IIC
Zone 21, Zone 22

UL 924
UL 1598 Wet Locations
UL 1598A Marine Outside Type (Salt Water)
UL 8750 LED Safety
CSA C22.2 No.137
CSA C22.2 NO. 250.0

Additional Features

  • Universal Voltage: AC120-277V (50/60Hz)
  • High efficacy up to 170lm/W
  • 7 different optics: 30° / 60° / 90° / 110° / T2 / T3 / T4
  • CCT Adjustable (3000K/ 4000K /5000K)
  • Wildlife Friendly Amber color options
  • 10kV surge protector is standard, 20kV is optional
  • Dimming: Standard 1 – 10VDC
  • Ambient temperatures -40°C to +65°C
  • IP66/67 | IK09 | 5G | NEMA 4X
  • Resistant up to 2,000 PSI of hose directed water
  • Tested 1000hrs salt spray to standard ASTM”B117-11”
  • Lumen Maintenance L70>150,000hours @ 25°C
  • 5-year limited system warranty
  • Harsh & Hazardous Duty

Standard Materials

  • Lamp housing, Splice box, and adapter – die cast copper-free aluminum
  • Finish – baked Powder epoxy/polyester
  • Lens – heat, shock and impact resistant clear or diffuse glass lens
  • Gaskets – high temperature resistant silicone
  • Hardware – stainless steel
  • Lacquer-free nameplate
