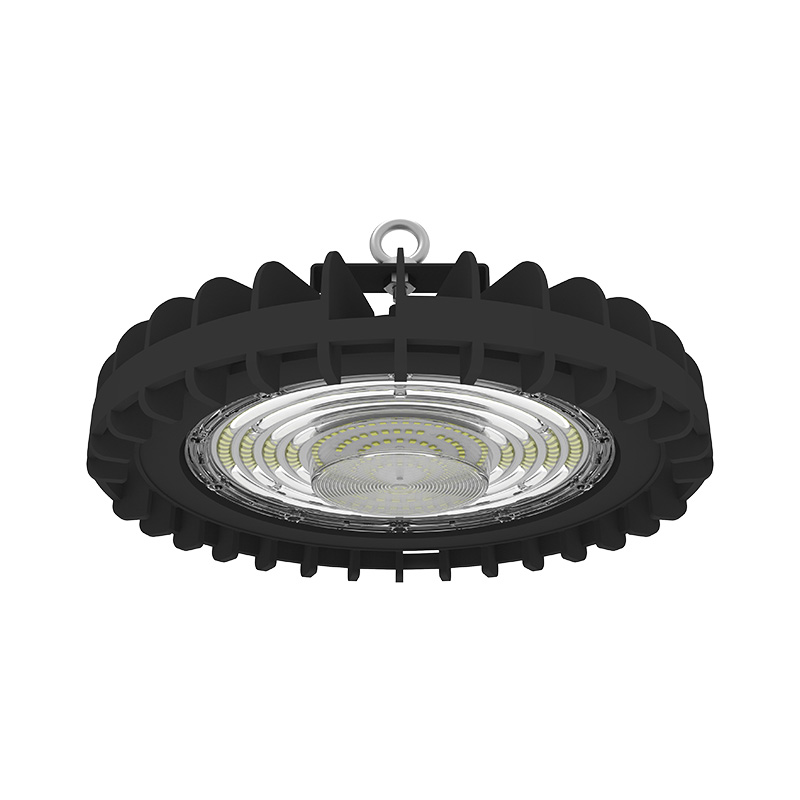

AC-in LED Highbay Light ORBIT GSU

Up to 24,000lm, GSU AC-In LED high bay is specially designed for different applications from harsh environment conditions to ordinary industrial workshops such as warehouse, industrial workplace, mining, food processing, marine, wastewater treatment, heavy manufacturing and general wash down areas.

Design Features

  • Lightweight and Compact, 40% thinner than conventional lighting, Perfect for confined or low height areas. .
  • Driver-less AC-In LED technology increases efficiency, reduces maintenance costs & environmentally friendly.
  • Electrophoretic Coating, corrosion resistance such as salt spray, acid, and alkali resistance.
  • Wattage ranges from 80W to 200W, cover most lighting project requirements.
  • Impact-resistant pc lens, impact protection up to IK10.
Part Number Builder

Datasheet

  • Technical Data

  • Mounting Options

  • Downloads

Technical Data

Product Series GSU
Rated Power 80W / 100W / 150W / 200W
Input Voltage 120V / 220V / 277V AC
Input Frequency 50/60Hz
Driver Efficiency ≥  90%
Lumen Output 9,600lm ~ 24,000lm
Luminous Efficacy 120Lm/W
Beam Angle 60° / 90° / 120°
CCT 2700K / 3000K / 4000K / 5000K
CRI Ra>70
Operating Temperature -40°C~+60°C
Lens Material Glass / PC
Mounting Options Hanging / U-bracket
Net Weight 4kg

Mounting Options

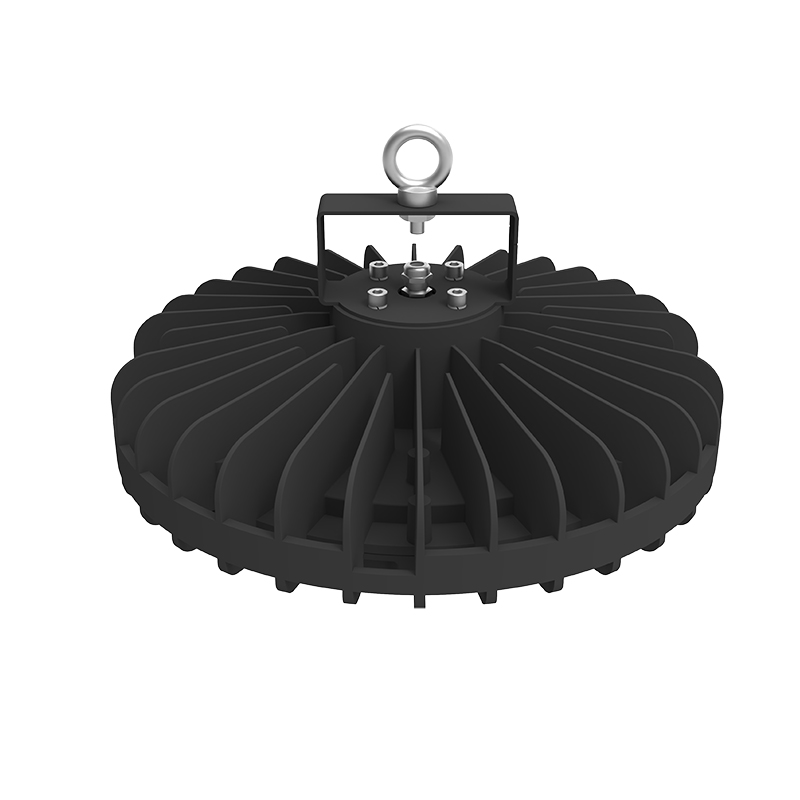

Hanging mount
Hanging mount

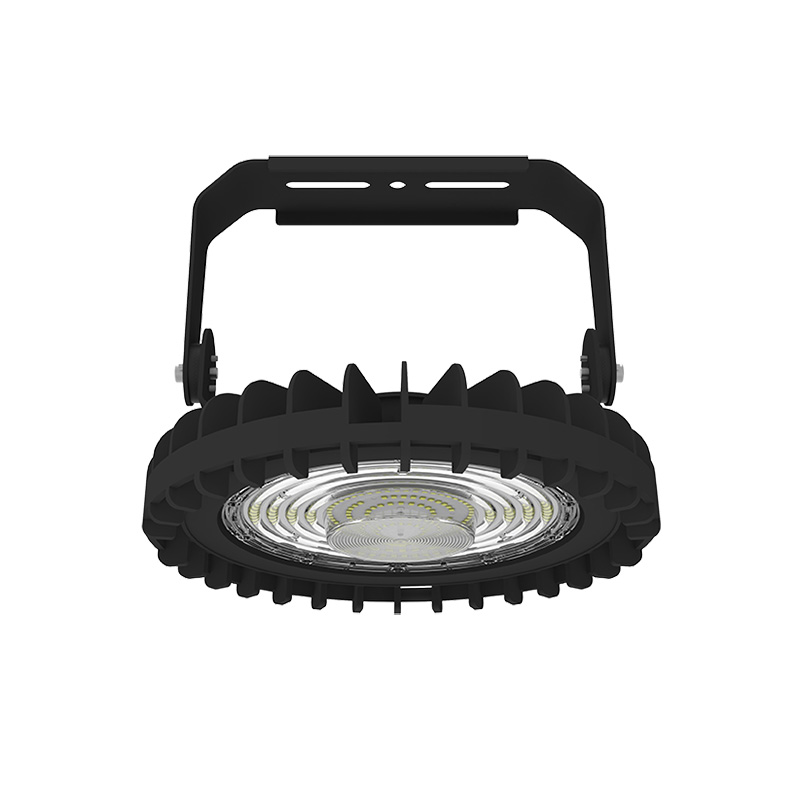

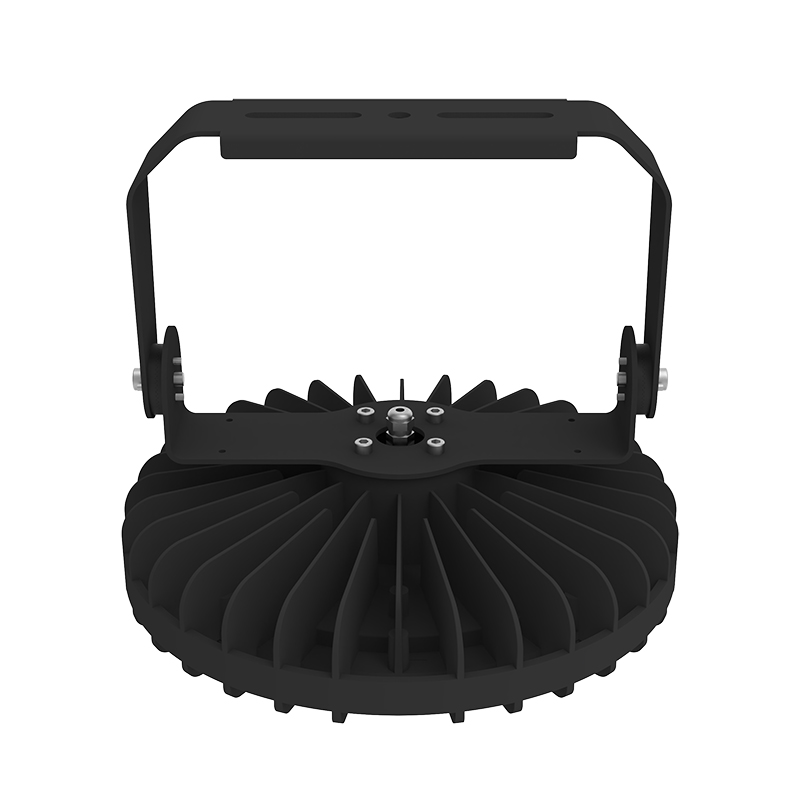

U-Bracket mount
U-Bracket mount

Document Updated Download
ORBIT™ GSU Spec Sheet 2024-10-08
Download
ORBIT™ GSU Brochure 2024-10-08
Download

Certifications & compliances

CE
UL 1598 Wet Locations
UL 8750 LED Safety
IP67
IK10

Additional Features

  • Input Voltage AC 120V / 220V / 277V
  • Light efficacy 120lm/W
  • 3 different optics: 60° / 90° / 120°
  • Ambient temperatures -40°C to +60°C
  • IP67 / IK10 / NEMA 4X
  • Resistant up to 2,000 PSI of hose directed water
  • Tested 1000hrs salt spray to standard ASTM”B117-11”
  • Lumen Maintenance 150,000hours @L70

Standard Materials

  • Body – die cast aluminum
  • Finish – baked Powder epoxy/polyester
  • Lens – Impact resistant PC or glass lens
  • Gaskets – high temperature resistant silicone
  • Hardware – stainless steel
