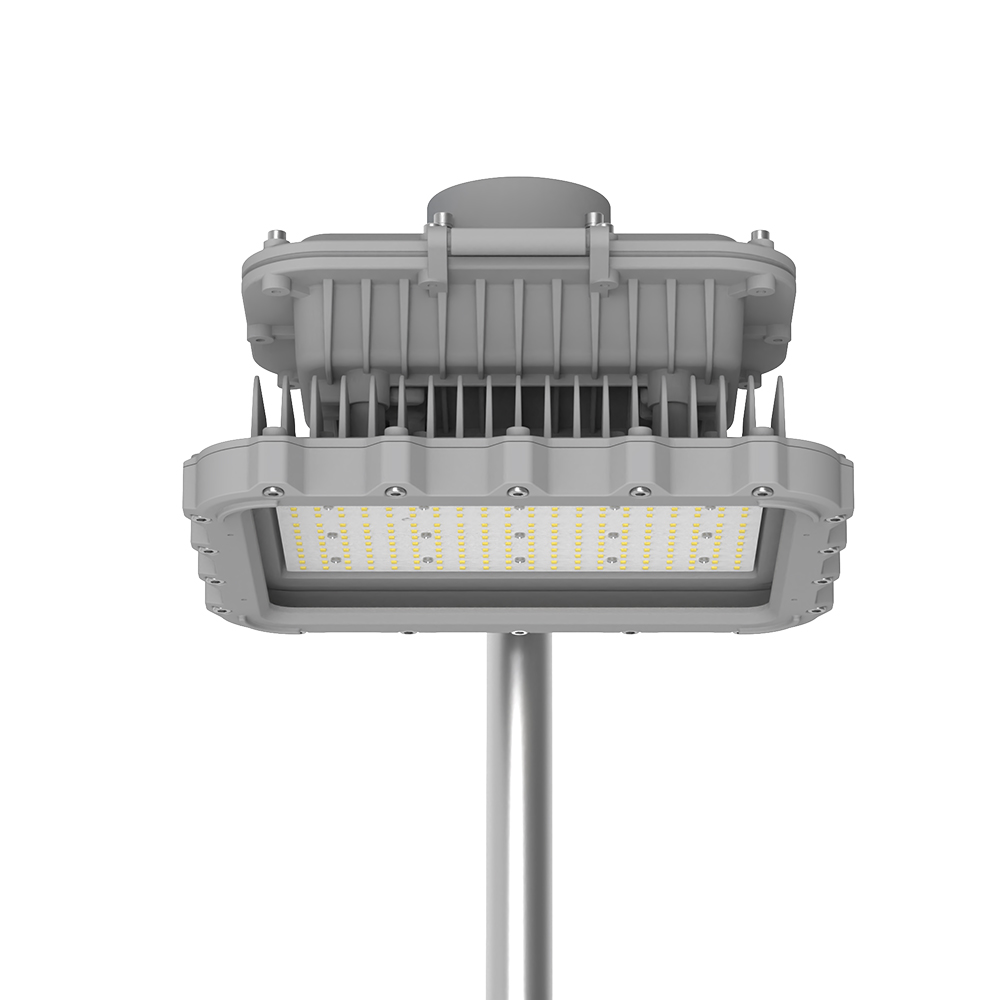

GHSL LED Conveyor Light

The GHSL Series Conveyor Lighting is designed for open-pit mining conveyor systems, providing powerful and reliable illumination for iron ore, copper, and other material handling applications. Delivering 12,800 to 32,000 lumens, the GHSL Series provides high-output lighting for conveyor belts, transfer points, maintenance areas, and access walkways. Its rugged construction is built to withstand demanding outdoor conditions, including dust, moisture, vibration, and temperature variations, while flexible mounting and beam options support different conveyor configurations.

Design Features

  • Optimized design, 11.5 kg ONLY, balanced well in weight, safety and durability.
  • Hinge design makes the installation easier and safer.
  • High efficacy LEDs, up to 170lm/w, maintains the same light intensity with less power consumption against the conventional lamps.
  • Multiple beam angles provide more choices for various scenarios.
  • 360° Adjustable U-Bracket corrosion, vibration, impact and shock resistant, passed 5G, 3-axis vibration test.
  • Universal mounting accessories for easy retrofitting
  • Terminal blocks fitted as standard for faster installation
Part Number Builder

Datasheet

  • Technical Data

  • Mounting Options

  • Downloads

Technical Data

Product Series GHSL
Rated Power 80W / 100W / 150W / 200W
Input Voltage AC100-277V, 347-480V
Input Frequency 50/60Hz
Driver Efficiency ≥  90%
Lumen Output 12,800lm ~ 32,000lm
Luminous Efficacy 160~170Lm/W
Beam Angle 30°/60°/90°/110°/T2/T3/T4
CCT Amber / 2700K / 3000K / 4000K / 5000K
CRI Ra>70
Ambient Operating Temperature -40°C~+65°C (80W 100W 150W )
-40°C~+60°C (200W )
Lens Material Glass
Mounting Options Pendant / Ceiling / Wall mount / Stanchion / U-Bracket
Cable Entries 3/4”NPT, 1-1/4”NPT, 1-1/2”NPT
Net Weight 11.5kg

Document Updated Download

Certifications & compliances

UL 1598 Wet Locations
UL 1598A Marine Outside Type (Salt Water)
UL 8750 LED Safety
IP67 / IK09 / 5G / NEMA 4X

Additional Features

  • Universal Voltage: AC120-277, 347-480V (50/60Hz)
  • High efficacy up to 170lm/W, Up to 32,000lm
  • 7 different optics: 30° / 60° / 90° / 110° / T2 / T3 / T4
  • CCT Adjustable (3000K/ 4000K /5000K)
  • Wildlife Friendly Amber color options
  • 10kV surge protector is standard, 20kV is optional
  • Dimming: Standard 1 – 10VDC
  • IP67 / IK09 / 5G / NEMA 4X
  • Resistant up to 2,000 PSI of hose directed water
  • Tested 1000hrs salt spray to standard ASTM”B117-11”
  • Lumen Maintenance 150,000hours @L70
  • 5-year limited system warranty
  • Optional self-testing emergency battery backup for None-hazardous applications.
  • Harsh & Hazardous Duty

Standard Materials

  • Lamp housing, Splice box, and adapter – die cast copper-free aluminum
  • Finish – baked Powder epoxy/polyester
  • Lens – heat, shock and impact resistant clear or diffuse glass lens
  • Gaskets – high temperature resistant silicone
  • Hardware – stainless steel
